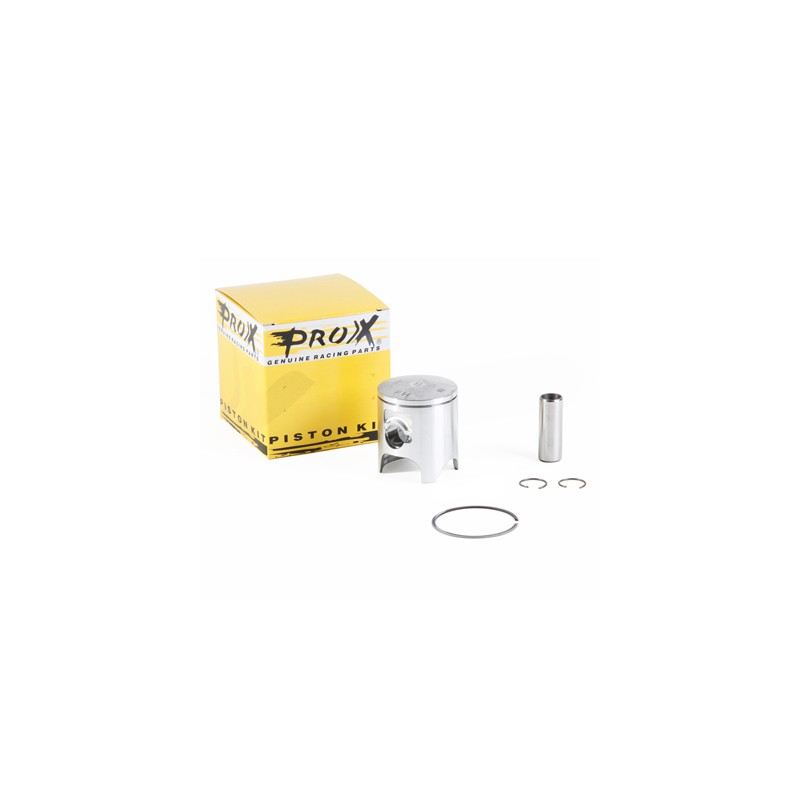

The latest cylinders are plated by a Nicasil plating. Therefore we offer a wide range of ProX pistons in standard size, as well as in A, B, C, D+ oversizes.
| Displacement | 82 | cc |
| Bore - Actual | 47.00 | mm |
| Bore - Standard | 47.00 | mm |
| Bore - Oversize | STD | N/A |
| Compression Height | 17.00 | mm |
| Dome Type | Dome | N/A |
| Additional Info | Reed cut-out, Cast Piston | N/A |
| Additional Info | USA Bore (82cc) | N/A |
| Piston Pin Hole Diameter | 14.00 | mm |
| Skirt Coating | - | N/A |
| Piston Size | 46.95 | mm |
| Total Height | 53.00 | mm |
| Country of Origin | Japan | N/A |
| Boss Space In | 16.00 | mm |
| Ring Locating Pin (F) | 12.00 | mm |
Ref: 01.1111.B
Brand: Prox
